This GTX 1070 card seals the gap up to GTX 1080 – Tek.no

It has just been revealed that among others MSI (and Asus) sets the graphics card to the press and reporters so that they provide extra well “out of the box.” Instead of starting in the “Game Mode”, which is the mode that is enabled by default when you buy MSI GTX 1070 Gaming X in store, reviewer copies set to slightly more powerful “OC Mode” by default.

Our reviewer copy of the MSI GTX 1070 Gaming X proved after a check also being set up to use the “OC Mode” out of the box. In this mode the core and boost the rate about 20 to 30 MHz higher than the “Gaming Mode”. We did a couple of tests of performance difference between these modes and found that there was talk of up 0.5 percent. Therefore, we tested no card again in Game Mode.

Tech PowerUp speculate about the høyereytende mode preprogrammed into Reviewers test specimens to save us time. Via software, both we and consumers install MSIs own Gaming App, which allows you to toggle between including Gaming Mode and OC Mode. Reviewers takes care nonetheless rarely trouble to install additional software.

We are waiting for a separate explanation for the practice of MSI and will update the issue once we hear from the company.

A challenger to the throne

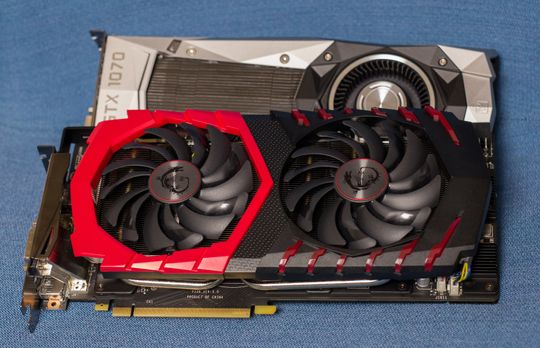

What separates MSI Gaming X and Nvidia’s Founders Edition? Photo: Anders Brattensborg Smedsrud, Tek.no

Many of you read our test of Nvidia’s GTX 1070 Founders Edition for just over a week ago, only to face a last page without character.

As mentioned we did not want to risk giving out a grade one week might seem like undeserved the next. We notified namely instead we immediately were ready with a competitor to Nvidia’s own reference design, MSI “Gaming X”, and that we, therefore, would be expected with the number setting.

Now, however, a day here when the results of both “original” and the challenger exists. By knowing the advantages and disadvantages to both Nvidia Founders Edition and tredjepartsleverandørers more costly models, here “represented” by MSI Gaming X, we can thus clarify which card is the best choice for you both this week and next week.

Unique features

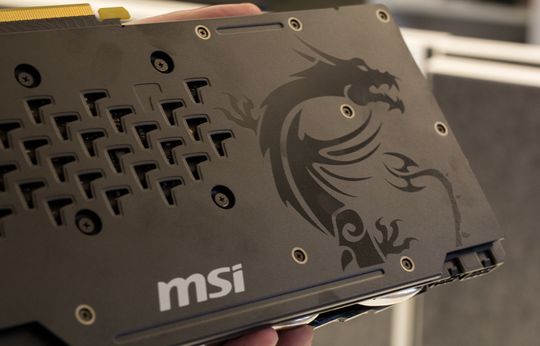

” Back Plate “has to all be. Well, no, but it makes itself sure is nice if you have a window in your rig, and then stiffens it up around 1.1 kg heavy graphics. Photo Anders Brattensborg Smedsrud, Tek.no

Torx 2.0: Today’s contender for Nvidia’s own GTX 1070 FE boasts numerous MSI exclusive features. The first thing a notice about MSI Gaming X, other than the roaring red color on the plastic housing, the two large fans.

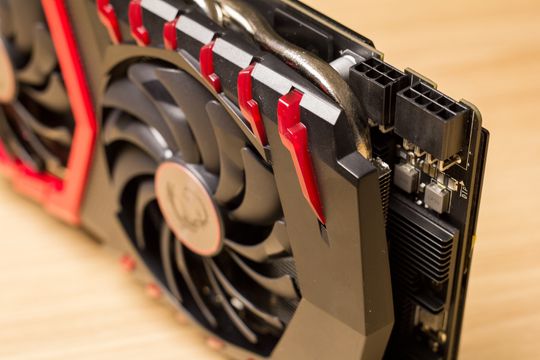

Gaming X received an additional 6-pin power connector. It is an advantage during overclocking. Photo: Anders Brattensborg Smedsrud, Tek.no

These are given name Torx 2.0, and, according to MSI be specially designed to increase air pressure and remove hot air faster. In relation to the Founders Editions said one and relatively compact fan spreads Gaming X its two fans really about in diameter.

This would alone make its to lower the noise level, but in addition there is hidden a set double ball bearings inside in the fans, which should contribute to reduced resistance and smoother, more stable rotation.

Zero Frozr: another advantage MSI graphics cards have traditionally been faced with Nvidia’s reference design is that the two Torx -viftene completely stop rotating when you do not charge it. If this is still in place, and how well it works, we find on page eight.

Twin Frozr: More powerful cooling, called Twin Frozr, as always in place. These will ensure that the heat generated during gameplay should have the greatest possible surface to partition before being transported away by Torx fans.

One of the biggest draws forwards at MSI Gaming X may potentially lie in the preparations being made to support a solid room for overclocking. In relation to the Founders Edition comes MSI Gaming X namely also with an additional 6-pin power connector. This gives the card the ability to draw up to 75 watts more. It’s probably not a bad idea, for overclocking requires that we know a higher power.

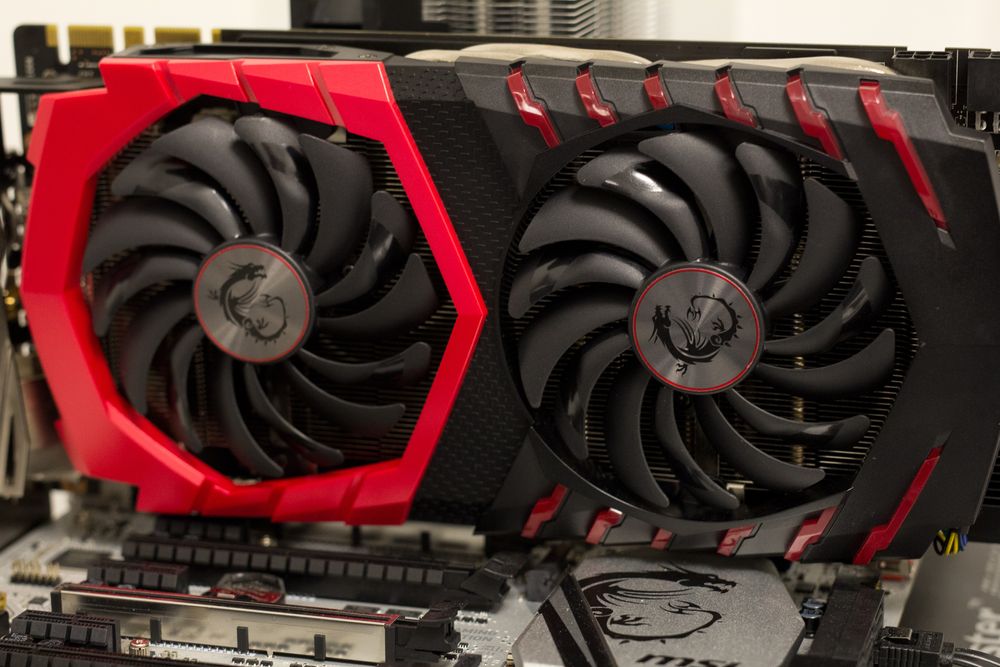

Here we see MSI Gaming X, with Torx 2.0 fans and Twin Frozr cooling. Photo: Anders Brattensborg Smedsrud, Tek.no

Improved, or just different?

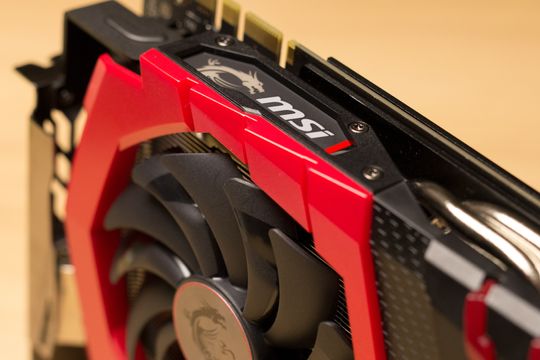

This MSI logo lights up and can pulsate. (But it can fortunately be switched off!) Photo: Anders Brattensborg Smedsrud, Tek.no

we already knew well to Nvidia’s GTX 1070 Founders Editions performance. What we do not know yet is whether MSI GTX 1070 Gaming X ‘design and components actually provide increased performance in practice or whether this in this case is of such importance that Gaming X is worth the approximately 300 extra buck compared to Nvidia’ FE “.

, the tradition believe it is the case that this year’s third models of GTX 1070 is more expensive than Nvidia own Founders Edition design to 4900 million – despite the fact that this is contrary to Nvidia fresh promises .

why is all of this test to detect differences between the two GTX 1070 interpretations. How is the performance out of the box, which card has the greatest potential for overclocking, and we can only refer to some of them as “noise bucket”?

All this and more you almost just scroll further into our test to find out. On the next page we compare specifications and overclocker. Otherwise you can click on one or more performance tests below to see a bunch of lovely performance measurements.

See how power efficient, hot and noisy MSI GTX 1070 Gaming X is on page eight.
Skip straight to the conclusion you are impatient, or read more about test our bench and how we test graphics card on the last page.

Because this test will mainly address the differences between Nvidia GTX 1070 Founders Edition and MSI GTX 1070 Gaming X, we recommend that you also read our test of the GTX 1070 Founders Edition. You can find more information about GP104-200 – piece that underlie GTX 1070 Series, and comparison of performance against far more graphics cards.
